Carbon Mechanical Tube ASTM A519 1030
Standard: ASTM A519Steel Grade: 1008, 1010/MT1010, 1018, 1020/MT1020, 1025, 1026, 4130, 4140,1030,1045Size: OD (2-180mm) X WT (2-30mm)Application: For mechanical and pressure use, and also for transporting steam, water, gas and etc.GradeCMnP≤S≤SiCrMo1008≤0.100.30-0.500.040.05---......
Send Inquiry
Product Description
Standard: ASTM A519
Steel Grade: 1008, 1010/MT1010, 1018, 1020/MT1020, 1025, 1026, 4130, 4140,1030,1045
Size: OD (2-180mm) X WT (2-30mm)
Application: For mechanical and pressure use, and also for transporting steam, water, gas and etc.

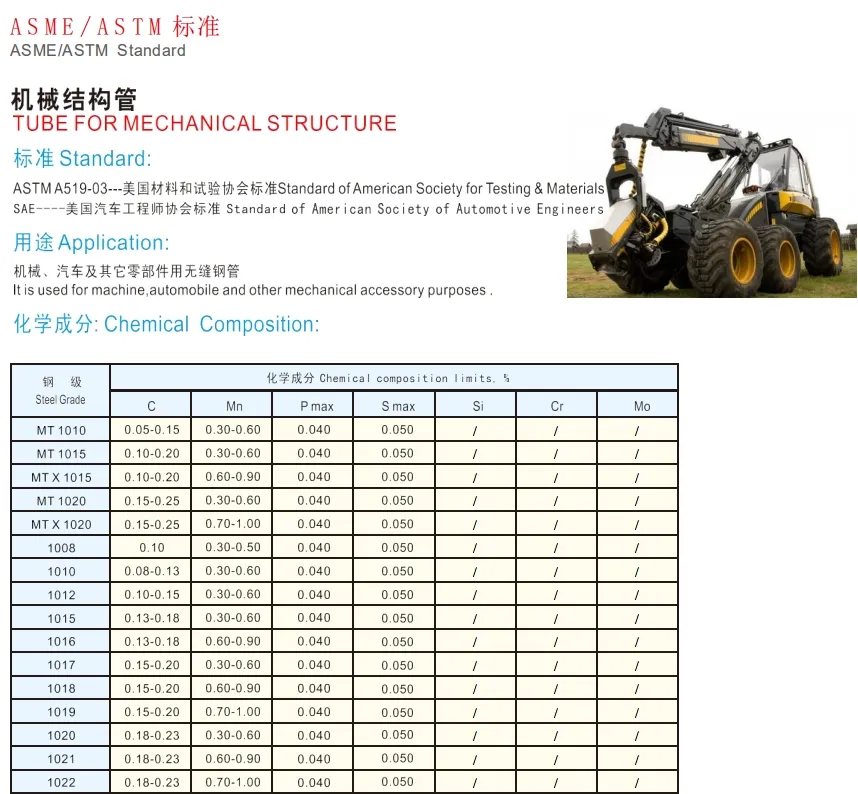

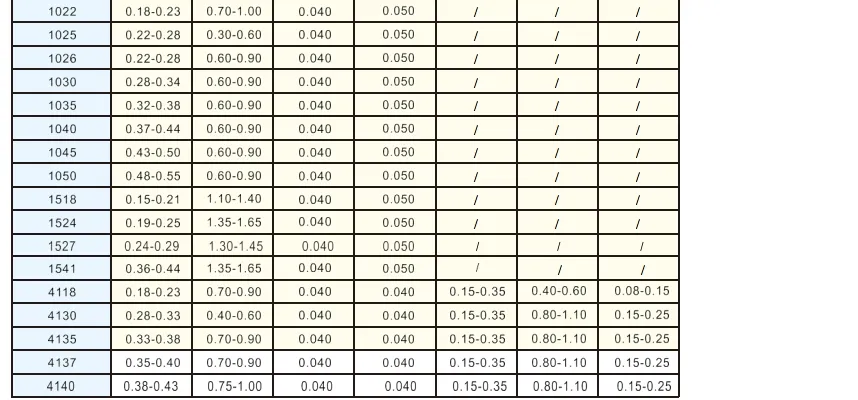

| Grade | C | Mn | P≤ | S≤ | Si | Cr | Mo |
| 1008 | ≤0.10 | 0.30-0.50 | 0.04 | 0.05 | - | - | - |
| 1010 | 0.08-0.13 | 0.30-0.60 | 0.04 | 0.05 | - | - | - |
| 1018 | 0.15-0.20 | 0.60-0.90 | 0.04 | 0.05 | - | - | - |
| 1020 | 0.18-0.23 | 0.30-0.60 | 0.04 | 0.05 | - | - | - |
| 1025 | 0.22-0.28 | 0.30-0.60 | 0.04 | 0.05 | - | - | - |
| 1026 | 0.22-0.28 | 0.60-0.90 | 0.04 | 0.05 | - | - | - |
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.04 | 0.05 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.00 | 0.04 | 0.05 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
Mechanical Properties
| Grade | Condition | Tensile Strenth, MPa | Yield Point, Mpa | Elongation |
| 1020 | CW | ≥414 | ≥483 | ≥5% |
| SR | ≥345 | ≥448 | ≥10% | |
| A | ≥193 | ≥331 | ≥30% | |
| N | ≥234 | ≥379 | ≥22% | |
| 1025 | CW | ≥448 | ≥517 | ≥5% |
| SR | ≥379 | ≥483 | ≥8% | |
| A | ≥207 | ≥365 | ≥25% | |
| N | ≥248 | ≥379 | ≥22% | |
| 4130 | SR | ≥586 | ≥724 | ≥10% |
| A | ≥379 | ≥517 | ≥30% | |
| N | ≥414 | ≥621 | ≥20% | |
| 4140 | SR | ≥689 | ≥855 | ≥10% |
| A | ≥414 | ≥552 | ≥25% | |
| N | ≥621 | ≥855 | ≥20% |

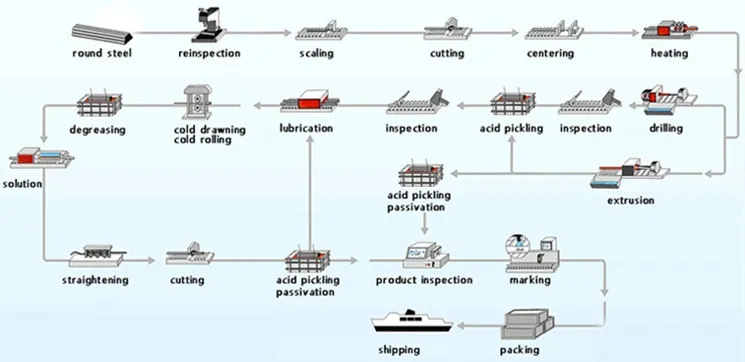

3. Carbon Steel Seamless Pipe Process

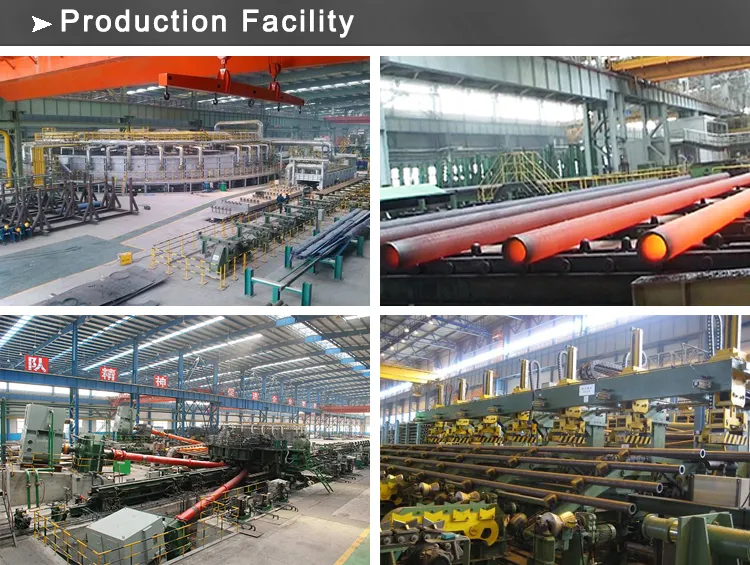

4.Carbon Steel Seamless Pipe Production Facility

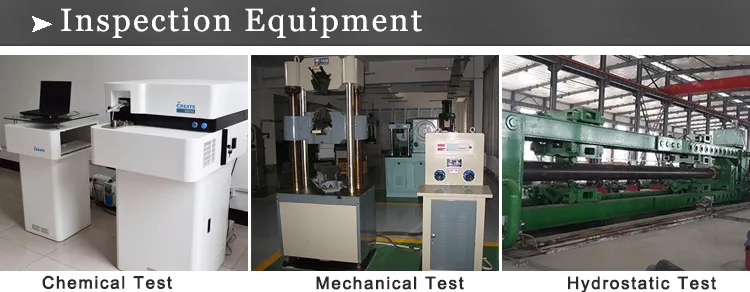

5.Carbon Steel Seamless Pipe Inspection Equipment

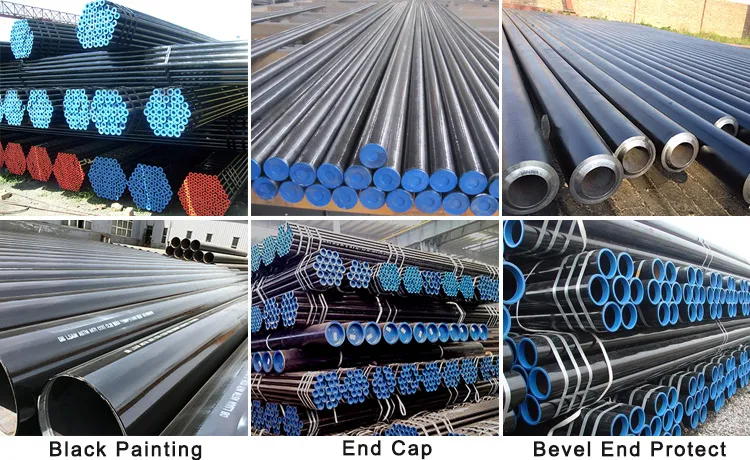

6.Carbon Steel Seamless Pipe Packing and Transportation
