Helical Ground Screw Piles for Foundation of Solar Photovoltaic Brackets
  • Helical Ground Screw Piles for Foundation of Solar Photovoltaic BracketsHelical Ground Screw Piles for Foundation of Solar Photovoltaic Brackets

Helical Ground Screw Piles for Foundation of Solar Photovoltaic Brackets

Product DescriptionProduct nameGround screwsSpecification:Length550mm-4000mmOuter Diameter52mm-219mmWall Thickness of pipe1.5mm-4.0mmDiameter of Spiral150-250mmDiameter of Flange160-250Thickness of Flange8mm, 10mmMaterialQ235 ISO630 Fe A / DIN EN10025Fe 360 B.Nut aperture3-M16 uniform distributionSu......

Send Inquiry

Product Description


Product Description

Product name
Ground screws
Specification:
Length550mm-4000mm
Outer Diameter52mm-219mm
Wall Thickness of pipe1.5mm-4.0mm
Diameter of Spiral150-250mm
Diameter of Flange160-250
Thickness of Flange8mm, 10mm
MaterialQ235 ISO630 Fe A / DIN EN10025Fe 360 B.
Nut aperture3-M16 uniform distribution
Surface TreatmentHot dip galvanized to DIN EN ISO 1461-1999.
Fasten MethodNuts, Flange, U Plate, or Customized
Drawing force parameters10.7-28.5KN
Parameters of bearing capacity20-40KN
Horizontal torsion parameters4.5-10.5KN
Delivery Time7 days after get 30% prepayment
PackagingSteel pallet and heat shrinkage film
PaymentT/T, L/C,Western Union

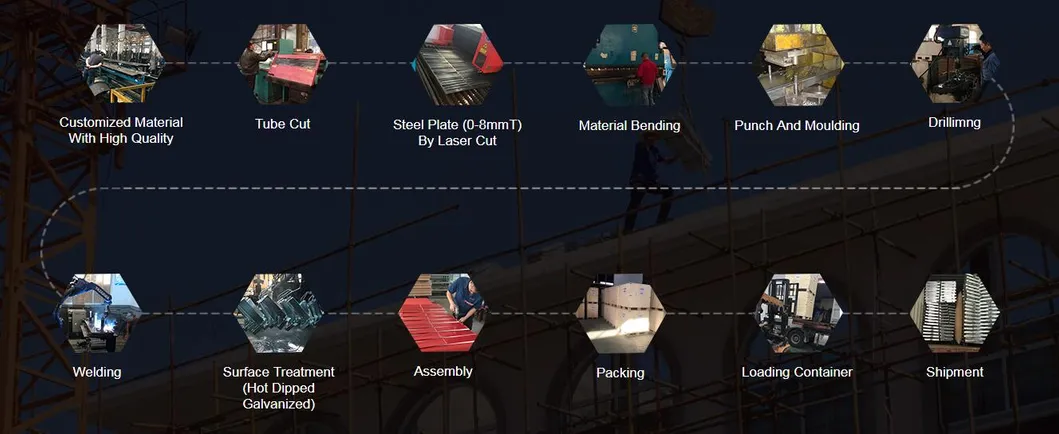

Product process
Helical Ground Screw Piles for Foundation of Solar Photovoltaic Brackets

FAQ

1.Q:What is the tube thickness of the ground screw?
A:2.0/2.5/3.0/3.5/3.75mm

2.Q:What is the steel material?
A:HONDE ground screw is make from Q235 steel round pipe and can be applied in a wide variety of different geological locations.

3.Q:What is the thickness of galvanization?
A:More than 60μm in general.

4.Q:How many applications of the ground screw?
A:1) Timber Construction
2) Solar Power Systems
3) City and Parks
4) Fencing Systems
5) Road and Traffic
6) Sheds and Containers
7) Flag Poles and Marks
8) Garden and Leisure
9) Boards and Banners
10) Event Structures

5.Q:How about your product quality?
A:Our ground screw piles are manufactured with first quality materials (hot dip galvanized complying with the ISO 1461:1999).All our suppliers (certified under ISO 9001:2000) carry out strict quality controls in order to get the best quality performance as required by our internal procedures.

6.Q:What's the Production Process of Ground Screw?
A:Precision Cutting Material → Heating | Shrink Pipe Tip → Welding Spiral → Hot Dipped Galvanized → Tapping | Testing | Polish → Packing & Shipping

7.Q:How to order from YUEYANG?
A:Buyer Send Enquiry →Get YUEYANG Quotation → Order Confirmation → Buyer Arrange 30% Deposit → Production Started upon Receipt of Deposit → Strict Inspection during Production → Buyer Arrange Balance Payment → Packing → Delivery as per Trade Terms (FOB/CFR/CIF)

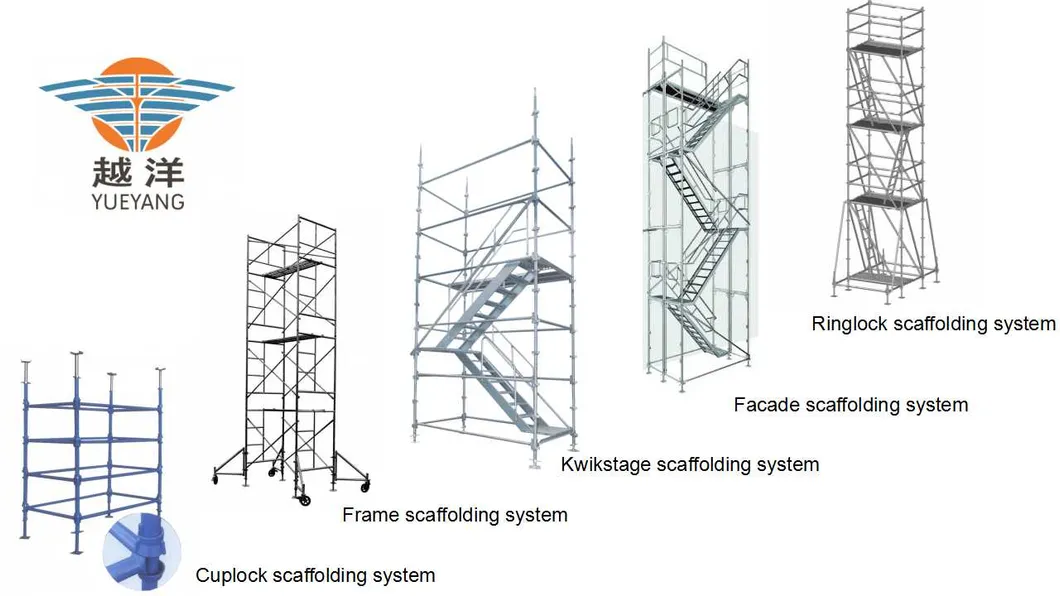

More products
Helical Ground Screw Piles for Foundation of Solar Photovoltaic Brackets

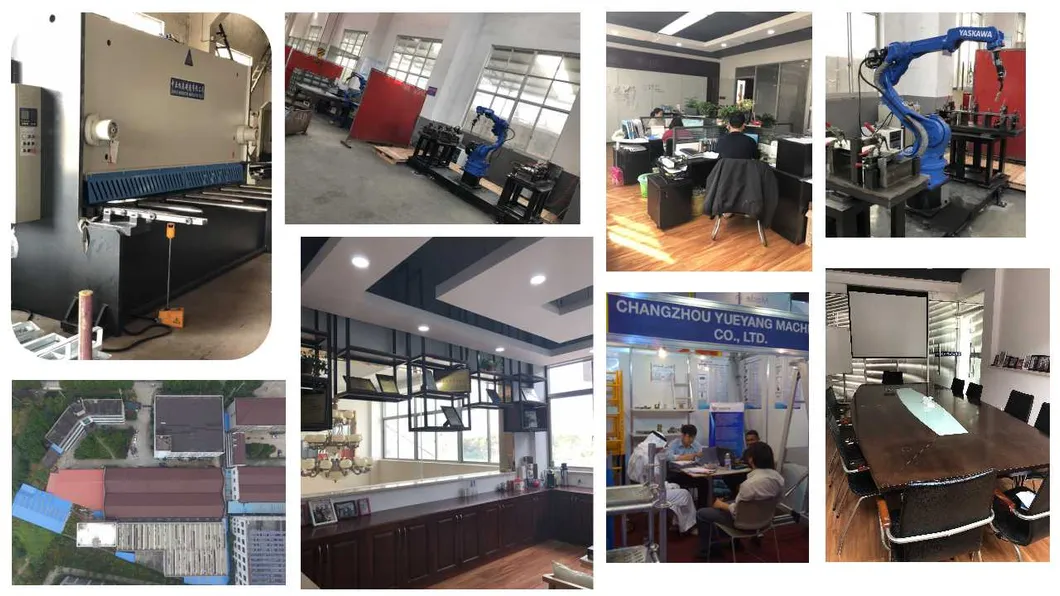

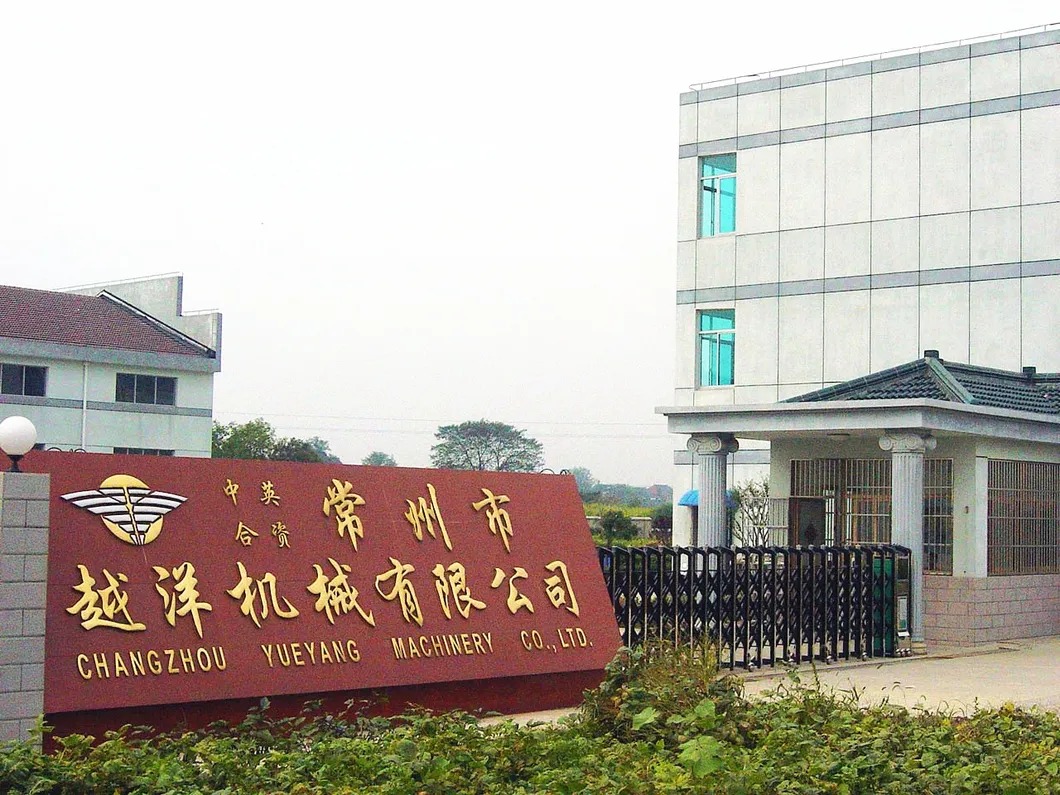

Company profile

Changzhou Yueyang Machinery Co., Ltd, established in 2 0 0 4, covers 2 1, 1 0 0 square meters.Located in Changzhou City near to Shanghai, enjoying convenient traffic.Specialized in manufacturing professional construction equipments, like scaffold systems, guardrail system and customized industry ladders etc.

We are an I S O 9 0 0 1 certificated company, which owns a team of experienced engineers and management people strict in quality control, our products are manufactured by advanced equipments, which conform to the national standard, EN and A S / N Z standards etc.Over 9 5 % of our products are exported abroad such as Europe, North and south American, Australia, New Zealand etc.

Helical Ground Screw Piles for Foundation of Solar Photovoltaic Brackets
Helical Ground Screw Piles for Foundation of Solar Photovoltaic Brackets

Our Services

1.Online fast professional technical advice
2.Best quality products
3.Best after-sales Service
4.Complaint Service
5.OEM produce, if none of our products meet your requirement, pls contact us for customizing.
