Product Description

Why us
Jiangsu Safety Wire Rope Co., Ltd. was established in June 2005, with a registered capital of 34 million USD, and 582 employees. We went public on Shanghai Stock Exchange in China on March 31, 2016 with the stock code: 603028. The factory covers an area of 102,000 square meters and has an annual output of 60,000 tons of steel wire ropes. Our market share & industry rankings for elevator wire ropes are among the top 3 in China.

With over 60 years of experience in manufacturing wire ropes, we offer the best performing wire ropes solutions for different application around the world maintaining the highest quality and safety standards. We are the first domestic enterprise to develop elevator wire ropes and now became the leading supplier of special steel wire ropes in China.

For more information

35W*K7 15*K7 24W*K7 16mm 18mm 20mm 22mm 24mm 26mm 28mm 1960MPa Lifting Steel Wire Rope Specifications Anti-Twisting Compacted Strand Cable Cord 35*K7 Suppliers

35W*K7 15*K7 24W*K7 16mm 18mm 20mm 22mm 24mm 26mm 28mm 1960MPa Lifting Steel Wire Rope Specifications Anti-Twisting Compacted Strand Cable Cord 35*K7 Suppliers

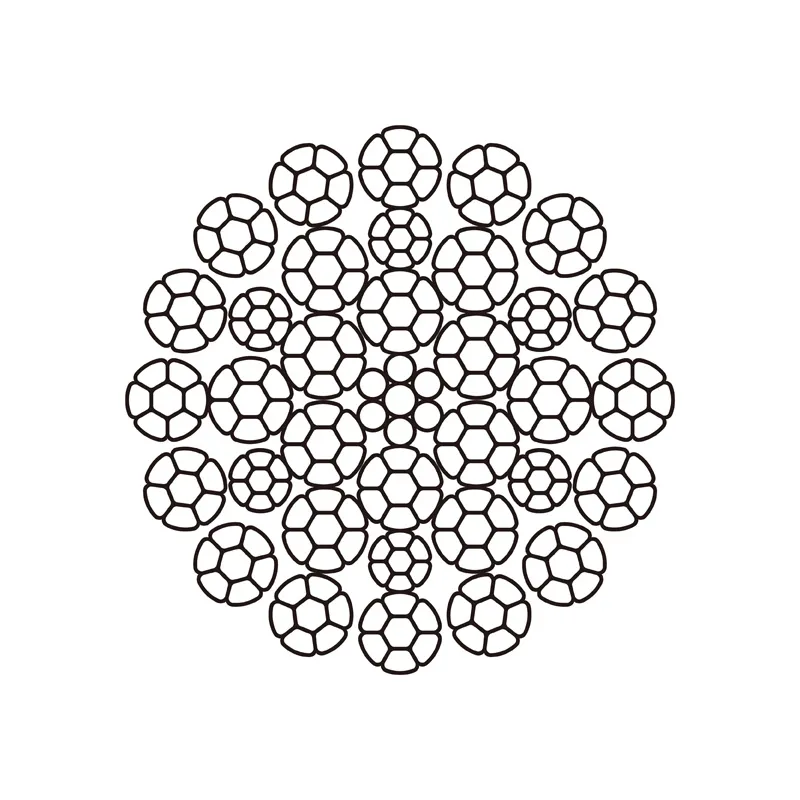

Specification 35(W)*K7 (Standard: GB/T 8918)
For specification of other standards such as ANSI, BS, DIN, EN, JIS, ISO4308 and so on please contact us.

Nominal diameter (mm)	Approx. weight (kg/100m)	Rope grades (MPa)
		1770	1960	2160
		Minimum breaking load (kN)
12	77.5	123	136	150
13	90.9	144	160	176
14	105	167	185	204
15	121	192	213	234
16	138	218	242	267
17	155	247	273	301
18	174	276	306	337
19	194	308	341	376
20	215	341	378	416
21	237	376	417	459
22	260	413	457	504
23	285	451	500	551
24	310	491	544	600
25	336	533	590	651
26	364	577	639	704
27	392	622	689	759
28	422	669	741	816
29	452	717	795	876
30	484	768	850	937
32	551	874	967	1070
34	622	986	1090	1200
36	697	1110	1220	1350
38	777	1230	1360	1500
40	861	1370	1510	1670
42	949	1500	1670	1840
44	1040	1650	1830	2020
46	1140	1810	2000	2200
48	1240	1970	2180	2400
50	1350	2130	2360	2600
52	1450	2310	2550	2820
54	1570	2490	2750	3040
56	1690	2680	2960	3260
58	1810	2870	3180	3500
60	1940	3070	3400	3750
Allowable diameter deviation:+2 ~ +4.5%

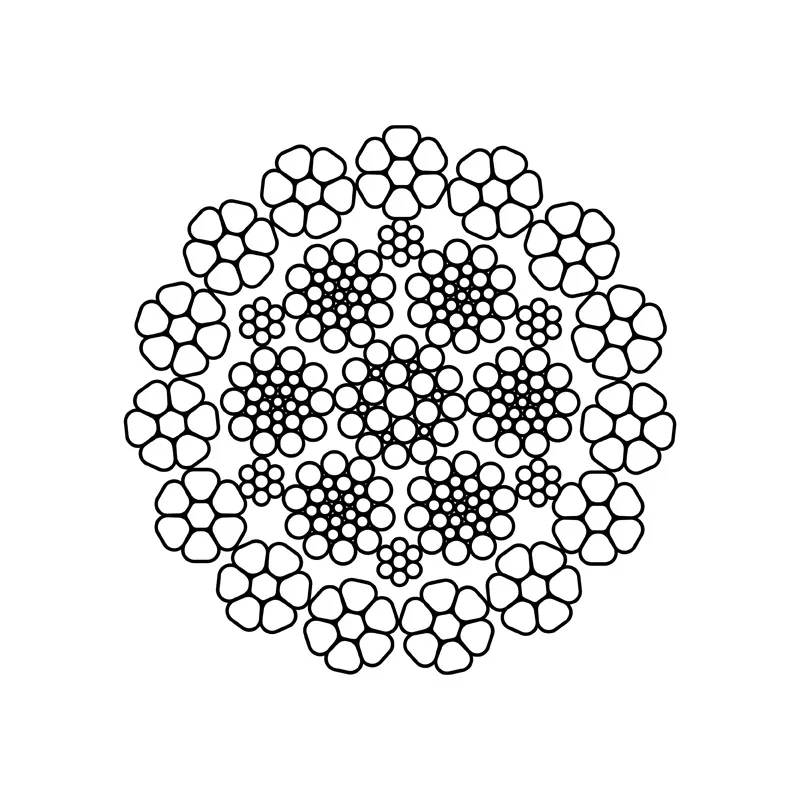

Specification 15×K7-IWRC (Standard: GB/T 8918)
For specification of other standards such as ANSI, BS, DIN, EN, JIS, ISO4308 and so on please contact us.

Nominal diameter (mm)	Approx. weight (kg/100m)	Rope grades (MPa)
		1670	1770	1870	1960	2160
		Minimum breaking load (kN)
12	69.1	106	112	118	124	137
13	81.1	124	132	139	146	161
14	94.1	144	153	161	169	186
15	108	165	175	185	194	214
16	123	188	199	211	221	243
17	139	212	225	238	249	275
18	156	238	252	267	279	308
19	173	265	281	297	311	343
20	192	294	312	329	345	380
21	212	324	343	363	380	419
22	232	356	377	398	417	460
23	254	389	412	435	456	503
24	276	423	449	474	497	547
25	300	459	487	514	539	594
26	324	497	526	556	583	642
27	350	536	568	600	629	693
28	376	576	611	645	676	745
29	404	618	655	692	725	799
30	432	661	701	741	776	855
32	492	752	797	843	883	973
34	555	849	900	951	997	1099
36	622	952	1009	1066	1118	1232
38	693	1061	1125	1188	1245	1372
40	768	1176	1246	1316	1380	1521

Specification 24(W)×K7(Standard: GB/T 8918)
For specification of other standards such as ANSI, BS, DIN, EN, JIS, ISO4308 and so on please contact us.

Nominal diameter (mm)	Approx. weight (kg/100m)	Rope grades (MPa)
		1670	1770	1870	1960	2160
		Minimum breaking load (kN)
12	67.7	98.6	105	110	116	128
13	79.4	116	123	130	136	150
14	92.1	134	142	150	158	174
15	106	154	163	173	181	199
16	120	175	186	196	206	227
17	136	198	210	222	232	256
18	152	222	235	248	260	287
19	170	247	262	277	290	320
20	188	274	290	307	321	354
21	207	302	320	338	354	391
22	227	331	351	371	389	429
23	249	362	384	406	425	468
24	271	394	418	442	463	510
25	294	428	454	479	502	554
26	318	463	491	518	543	599
27	343	499	529	559	586	646
28	368	537	569	601	630	694
29	395	576	610	645	676	745
30	423	616	653	690	723	797

Overview of SAFETY

35W*K7 15*K7 24W*K7 16mm 18mm 20mm 22mm 24mm 26mm 28mm 1960MPa Lifting Steel Wire Rope Specifications Anti-Twisting Compacted Strand Cable Cord 35*K7 Suppliers

FAQ
1. Quality?
We focus on the manufacture of steel wire ropes for over 60 years and participated in the formulation of several important steel rope standards in China, such as GB/T 31979-2015, GB/T 29086-2012, GB/T 20118-2017, GB/T8903-2018. SAFETY's market share & industry rankings for elevator wire ropes are among the top 3 in the world. There is no need to worry about quality.

2. Price?
We provide high-quality products with moderate prices. A little higher prices bring you the better quality and service.

3. Customized?
Customizing products for special requirements is available, for example: strength/tensile, twist direction, diameter, material, surface coating, etc.

4. Delivery time?
seven days will be ok if wire ropes are in stock. If not, we need additional 30 days to produce your wire ropes.

5. Service
Our professional service team can provide installation guidance services and basic technical training on wire ropes if you need.
