China K3*48 K3X48 FC Crushing Compacted Swaged Lifting Steel Wire Rope Cable Cord 10-40mm 1770 N/mm2 1960 N/mm2 for Crane Replacement Fittings ISO2408

Product Description

Why us

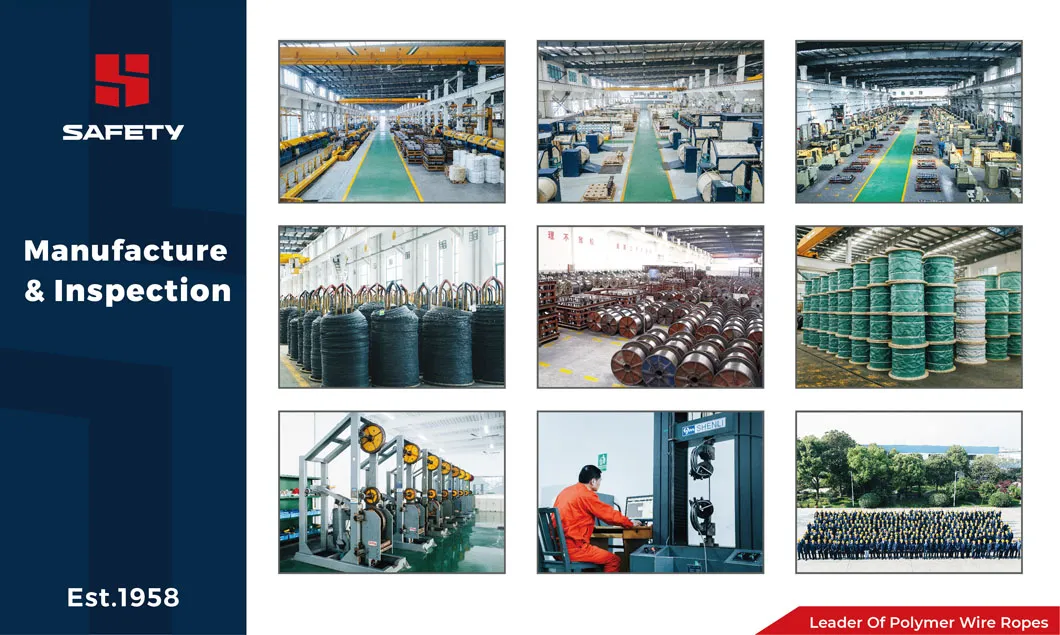

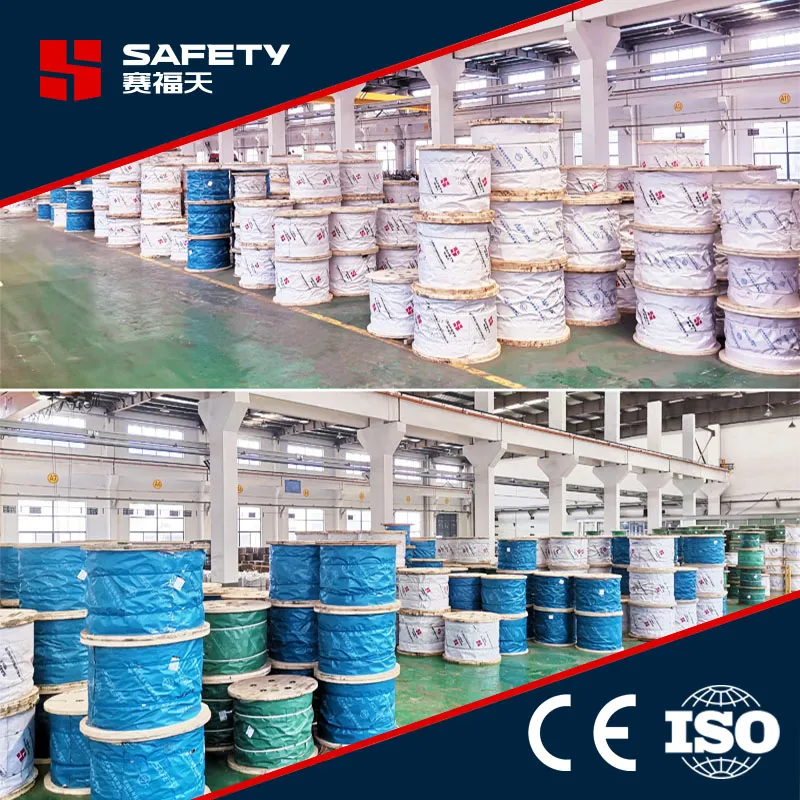

Jiangsu Safety Wire Rope Co., Ltd. was established in June 2005, with a registered capital of 34 million USD, and 582 employees. We went public on Shanghai Stock Exchange in China on March 31, 2016 with the stock code: 603028. The factory covers an area of 102,000 square meters and has an annual output of 60,000 tons of steel wire ropes. Our market share & industry rankings for elevator wire ropes are among the top 3 in China.

With over 60 years of experience in manufacturing wire ropes, we offer the best performing wire ropes solutions for different application around the world maintaining the highest quality and safety standards. We are the first domestic enterprise to develop elevator wire ropes and now became the leading supplier of special steel wire ropes in China.

For more information

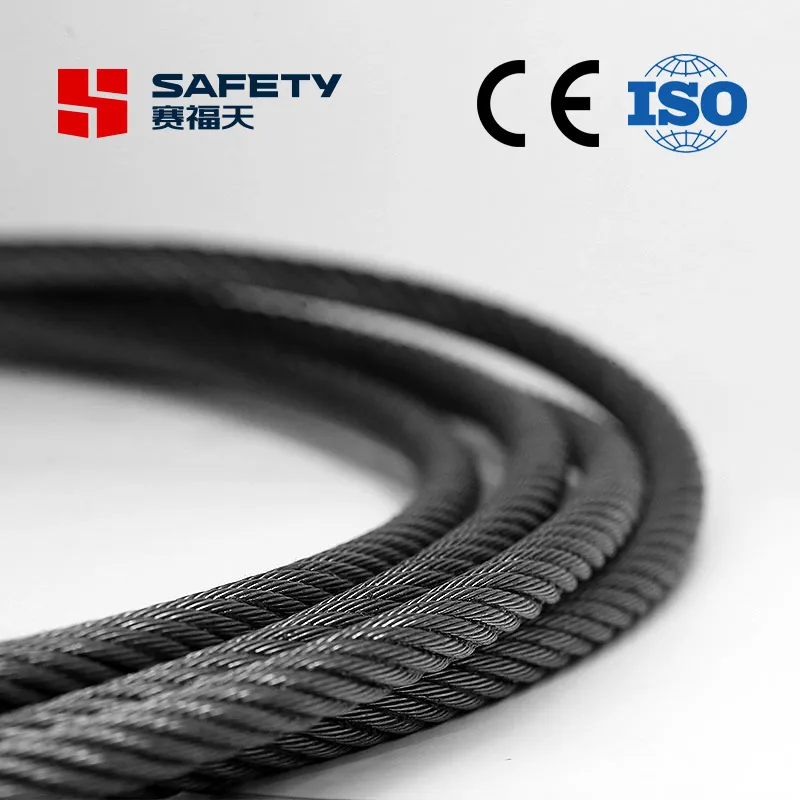

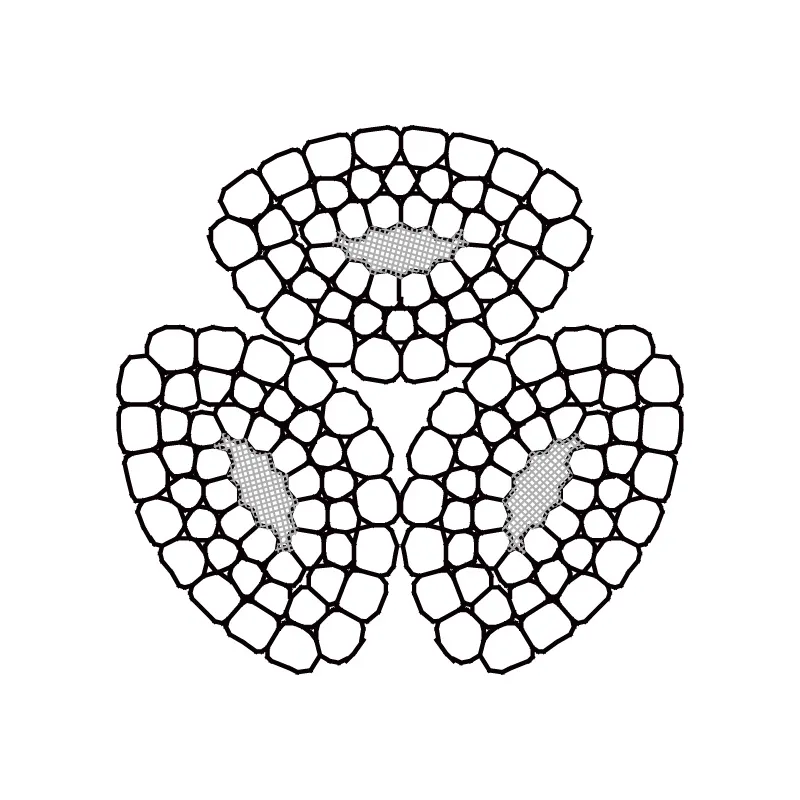

K3*48 K3X48 FC Crushing Compacted Swaged Lifting Steel Wire Rope Cable Cord 10-40mm 1770 N/mm² 1960 N/mm² for Crane Replacement Fittings ISO2408

K3*48 K3X48 FC Crushing Compacted Swaged Lifting Steel Wire Rope Cable Cord 10-40mm 1770 N/mm² 1960 N/mm² for Crane Replacement Fittings ISO2408

Specification (Standard: GB/T 8918)
For specification of other standards such as ANSI, BS, DIN, EN, JIS, ISO and so on please contact us.

Nominal diameter (mm)	Approx. weight (kg/100m)	Rope grades (MPa)
		1570	1670	1770	1870	1960
		Minimum breaking load (kN)
8	26.2	40.7	43.3	45.9	48.5	50.8
9	33.2	51.5	54.8	58.1	61.3	64.3
10	41.0	63.6	67.6	71.7	75.7	79.4
11	49.6	76.9	81.8	86.7	91.6	96.0
12	59.0	91.6	97.4	103	109	114
13	69.3	107	114	121	128	134
14	80.4	125	133	141	148	156
15	92.3	143	152	161	171	179
16	105	163	173	184	194	203
17	118	184	195	207	219	229
18	133	206	219	232	245	257
19	148	230	244	259	273	287
20	164	254	271	287	303	318
22	198	308	327	347	367	384
24	236	366	390	413	436	457
26	277	430	457	485	512	537
28	321	499	530	562	594	622
30	369	572	609	645	682	714
32	420	651	693	734	776	813
34	474	735	782	829	875	918
36	531	824	877	929	982	1030
38	592	918	977	1040	1090	1150
40	656	1020	1080	1150	1210	1270

Overview of SAFETY

K3*48 K3X48 FC Crushing Compacted Swaged Lifting Steel Wire Rope Cable Cord 10-40mm 1770 N/mm² 1960 N/mm² for Crane Replacement Fittings ISO2408

FAQ
1. Quality?
We focus on the manufacture of steel wire ropes for over 60 years and participated in the formulation of several important steel rope standards in China, such as GB/T 31979-2015, GB/T 29086-2012, GB/T 20118-2017, GB/T8903-2018. SAFETY's market share & industry rankings for elevator wire ropes are among the top 3 in the world. There is no need to worry about quality.

2. Price?
We provide high-quality products with moderate prices. A little higher prices bring you the better quality and service.

3. Customized?
Customizing products for special requirements is available, for example: strength/tensile, twist direction, diameter, material, surface coating, etc.

4. Delivery time?
seven days will be ok if wire ropes are in stock. If not, we need additional 30 days to produce your wire ropes.

5. Service
Our professional service team can provide installation guidance services and basic technical training on wire ropes if you need.
